Indef-C, ISI Marked, Classy Chain Pulley Block
Indef-C
The stylish, compact and easy-to-use Indef C Chain Pulley Blocks are engineered feats of expertise that are designed to boost your productivity and efficiency.
These indigenously designed Triple Spur Gear CPBs are ideal for heavy-duty application and its robust design adds to the performance. The machines have been testified by CE and ISI Certifications for quality and offer a lot of flexibility with capacities ranging from 1T to 20T and a height of lift up to 40 metres.
USPs
- Offers SWL up to 20T and a Height of Lift up to 40m.
- A Made in India product.
- Less Operating Pull.
- Light weight and sturdy.
- Availability of genuine spare parts and service.
- EX/Atex/Spark-proof Design
Features
- CE and ISI Certified product.
- Comes with double chain guide rollers.
- Grade 80 load chain for increased strength and resistance to wear and tear.
- Self-sustaining, maintenance-free friction brake.
- Finish cover is coated with anti-corrosion powder.
- Zinc plated parts.
Benefits
- Assured quality and reliability.
- Longer working life.
- High operating efficiency and reduced downtime.
- Pleasing aesthetics.
- Safe and easy to use product with minimal maintenance.

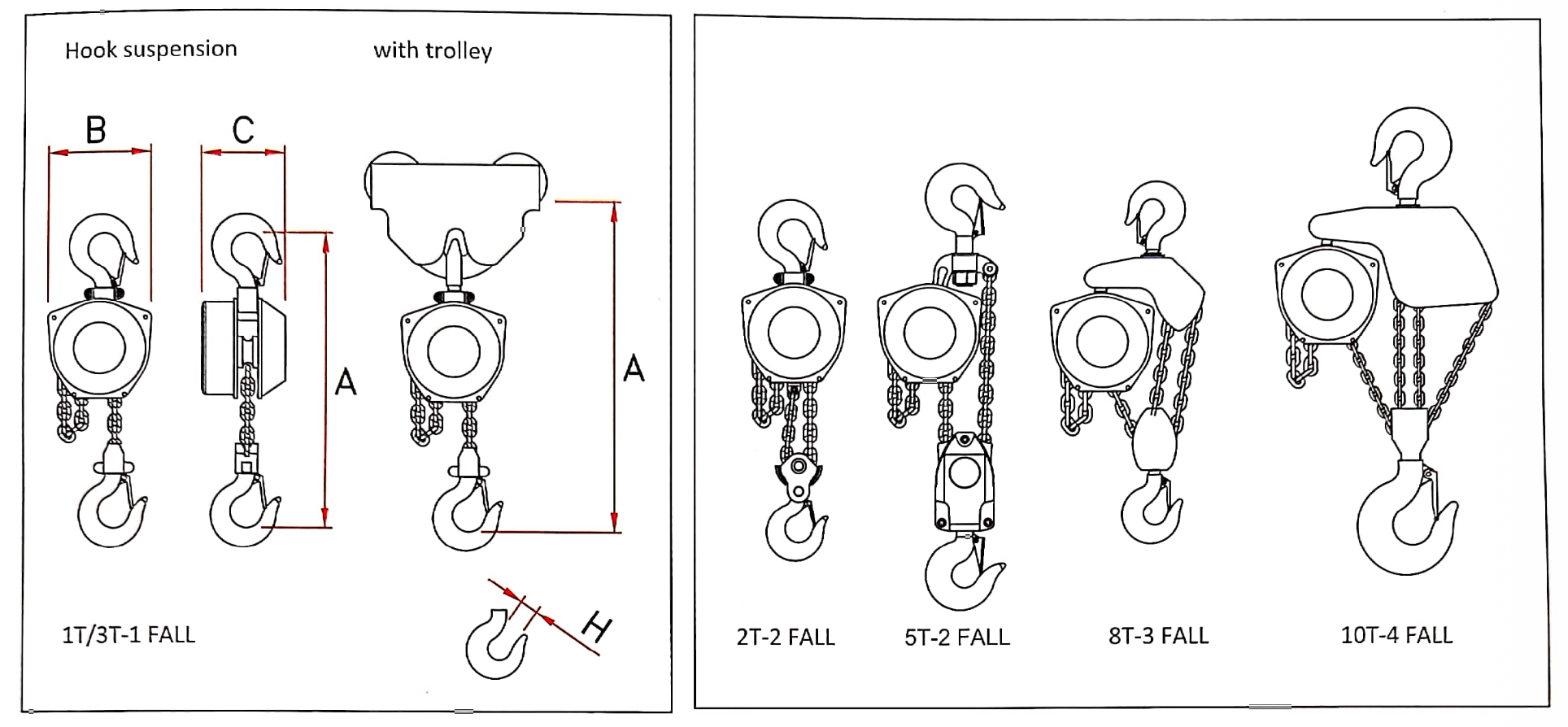

| CAPACITY (T) | MT | 1T | 2T | 3T | 5T | 8T | 10T |
|---|---|---|---|---|---|---|---|
| Number of falls of load chain | Nos. | 1 | 2 | 1 | 2 | 3 | 4 |
| Load Chain size Dia. | mm | 6.3 | 6.3 | 10 | 10 | 10 | 10 |
| Hand Chain size Dia. | mm | 5 | 5 | 5 | 5 | 5 | 5 |
| A (Hook suspension) | mm | 380 | 450 | 535 | 805 | 830 | 850 |
| A (with trolley range 1&2) | mm | 430 | 500 | 705 | 895 | 980 | 880 |
| A (with trolley range 3) | mm | 470 | 540 | 720 | 895 | 980 | 880 |
| B | mm | 161 | 161 | 228 | 280 | 430 | 480 |
| C | mm | 130 | 130 | 175 | 209 | 220 | 220 |
| H | mm | 31 | 32 | 42 | 51 | 75 | 75 |
| Weight at 3M Lift | Kg | 10 | 11 | 20 | 59 | 94 | 130 |
| Extra weight per additional M lift | Kg | 1.8 | 2.6 | 3.0 | 5.7 | 7.9 | 10.1 |
| Running pull on hand chain | Kg | 25 | 28 | 34 | 41 | 46 | 43 |
| Velocity ratio | 45 | 90 | 78 | 156 | 234 | 312 |
